Microbotics, Inc.

Serial Line Voltage Level Converters RS232, RS422, and TTL

SLC10232, SLC10422-TTL, SLC22232

The Microbotics serial converters offer full duplex serial line level conversion that supports connections to RS232, RS422, and TTL devices. Use of these converters allows a device with an RS232 port to obtain higher data rates and longer cable lengths. In addition, the small size of the Microbotics RS232-RS422 converters allows them to be wired directly into a harness.

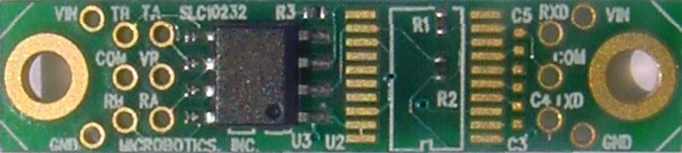

The SLC10232 is a single channel serial converter that provides RS232/RS422 or RS232/TTL conversion.

The SLC10422-TTL is a single channel serial converter that provides RS422/TTL conversion.

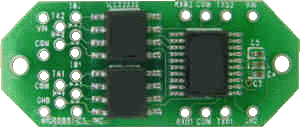

The SLC22232 is a dual channel serial converter that provides conversion of two full duplex channels with a single board.



In an effort to conserve energy, Microbotics support and production
offices will be closed on Fridays.

Contact us for pricing and terms.

RS232 to/from RS422 Serial Converter Features:
  • Extremely small serial level converter
    1.30 x .30 in. (33.0 x 7.6 mm) for the SLC10232 and SLC10422-TTL
    1.20 x .50 in. (30.5 x 12.7mm) for the SLC22232
  • Provides bi-directional channels, each of which converts RS232 signals from a computer to/from RS422 or TTL format for a variety of digital devices
  • Designed to be wired directly into the wiring harness
  • On board mid-level voltage reference to support TTL <=> RS-232 conversion
  • Wide supply range, 4 VDC to 40 VDC
  • 30 Day Free Support
Typical Applications for the RS232 to/from RS422 Serial Converter
  • Industrial serial communications
  • Interconnecting serial communication devices including RF transceivers, navigation instruments, and payloads
  • Extending RS 232 communication links over long distances and through noisy environments

RS232 to/from RS422 Serial Converter Product Documentation






For Pricing and Terms


Single Channel Serial Line Level Converter; RS-232 and RS-422
Single Channel SLC10232

RS422/TTL conversion; RS422 and TTL
Single channel RS422 to TTL

Dual Channel Serial Line Level Converter; RS-232 and RS-422
Dual Channel SLC22232
